3. Driver Installation

Installing the Driver

Notice

Do not connect the machine and the computer before beginning this procedure.
Make sure to make the connection by following the procedures. Failure to follow the procedures may make installation impossible.

* If the driver is already installed, uninstall it.

警告Uninstalling the Driver
(Opens in new window)

Procedure

1. Log on to Windows as “Administrators.”

2. Unzip the downloaded file, and open the folder.

3. Open the folder for your operating system.

Operating system (OS) Folder name
Windows 8/8.1 64-bit edition WIN8X64
Windows 8/8.1 32-bit edition WIN8X86
Windows 7 64-bit edition WIN7X64
Windows 7 32-bit edition WIN7X86

* If you select the wrong folder, you will not be able to install the driver correctly.

4. Double-click the file "SETUP64.exe" (64-bit edition) or "SETUP.exe" (32-bit edition) located in the folder.

The file extension (.exe) may be hidden.

5. When "User Account Control" window appears on the screen, click [Continue].

6. Select [Install], "Model" to install, port [USB], and click [Start].

Driver installation starts. Follow the messages to install the driver.

drive

7. Select [I accept the terms in the license agreement], click [Next].

drive2

8. When the window shown here is displayed, click [Install].

drive3

9.

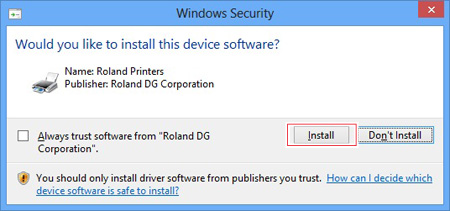

Windows 8/8.1 : When the window shown here is displayed, click [Install].

drive4

Windows 7 : When the window shown here is displayed, click [Install this driver software anyway].

drive4

10. When the window shown here is displayed, click [finish].

drive5

11. Connect the machine to the power cord and AC adapter.

06_02
警告WARNING Do not use this machine with a power supply that does not meet the ratings displayed on the AC adapter.
Doing so may lead to fire or electrical shock.
警告WARNING Do not use AC adapters or power cords other than those that are included with the machine.
Doing so may lead to fire or electrical shock.
警告WARNING Handle the AC adapter, power cord, plug, and electrical outlet correctly and with care. Never use any damaged items.
Using damaged items may lead to fire or electrical shock.
警告WARNING When using extension cords or power strips, make sure they are rated higher than the machine's ratings for voltage, frequency, and amperage.
There is a risk of fire when many loads are connected to one electrical outlet or when using long extension cords.

 Location of Power Rating Label

定格電源の表示位置

12. Turn on the power switch of the machine.

Initialization starts.When the green light stops flashing and remains steadily lit, initialization is complete.

06_03

13. Connect the machine to the computer using the USB cable.

When connecting, please observe the followings. Or, the computer may not be able to communicate with the machine correctly.

  • Use the supplied USB cable.
  • Be sure to refrain from using a USB hub.
  • Be sure to refrain from using a USB extension cable.

*After connecting the machine to the computer, start installing the machine driver. From [Control Panel], click [View devices and printers]. When the machine appears under [Printers and Faxes], installation is complete. Do not remove the USB cable until installation is complete.
